Plastic Coated Stone Cage Wire Mesh / 4.0mm Gabion Welded Wire Mesh

Place of Origin MADE IN CHINA
Brand Name TALIN
Product Details
Material Low Carbon Steel Wire, Galvanized Steel Wire, PVC Protective Layer Wire Diameter 2.0-4.0mm
Surface Treatment Plastic Coated Aperture 60×80mm、80×100mm、80×120mm、100×120mm、120×150mm
Cage Thickness 0.15-0.5m Sliver 0.5-1mm
High Light

Plastic Coated Stone Cage Wire Mesh


4.0mm Stone Cage Wire Mesh


gabion welded wire mesh

Leave a Message
Product Description


Plastic coated gabion net is the use of machine to metal wire one-way twist two weeks woven hexagonal net (hexagonal net) made of cage, cage thickness in 0.15-0.5m.



low carbon steel wire, galvanized steel wire, PVC protective layer



Plastic coated stone cage mesh aperture is generally divided into: 60*80mm, 80*100mm, 80*120mm, 100*120mm, 120*150mm which double stranded some length shall not be less than 50mm. To ensure the metal coating and PVC coating of the stranded wire is not damaged.


Wire diameter:

Mesh range in 2mm-4mm; Side wire is usually greater than the mesh thickness of 0.5mm-1mm; Binding wire is usually smaller than the mesh, most common to 2.2mm


Compilation method:

The galvanized steel wire, low carbon steel wire woven into a variety of aperture hexagonal nets, and then coated plastic, plastic thickness of about 1mm.



Plastic coated gabion net the wire twisted together in pairs, will not fall off, strong and firm. Plastic coated gabion net, strong corrosion resistance. And through color matching, it can be coordinated with the surrounding environment.

(1) Economy. Just put the stone in the cage and seal it.

(2) The construction is simple and does not need special technology

(3) have a strong ability to resist natural damage and corrosion resistance and adverse climate impact.

(4) Can withstand a large range of deformation, but still does not collapse.

(5) the silt between the gap of cage stone is conducive to plant production, and can be fused with the surrounding natural environment

(6) With good permeability, can prevent damage caused by hydrostatic.

(7) Saving transportation costs. It can be folded up for transport and assembled on site

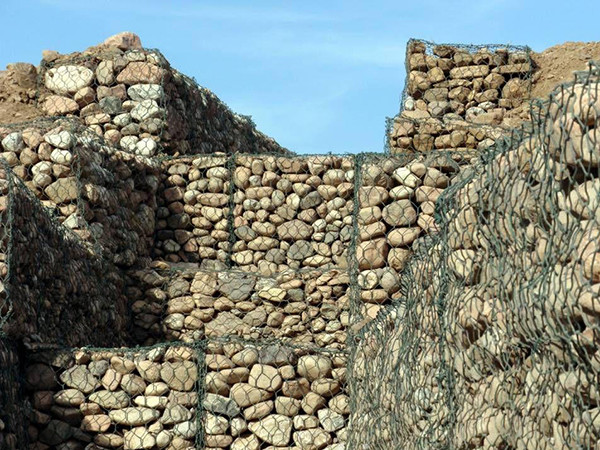

It can be used for slope support, foundation pit support, mountain rock surface hanging net shotcrete, slope planting (greening), railway highway isolation block, it can also be made into box cage, net pad, used for river, dam and seawall scour protection and reservoir, river closure with cage.
