Slope Reinforced Stone Cage Wire Mesh / Hot Dip Metal Cage Retaining Wall
| Place of Origin | MADE IN CHINA |
|---|---|
| Brand Name | TALIN |
| Model Number | L*2*1*1,L*2*1*o.8 |
| Minimum Order Quantity | 500PCS |
| Price | FOB USD 10-11/PCS |
| Packaging Details | 20000 square meters per 40 feet container |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Heavy Galvanized ,hot Dip Galvanized Wire ,pvc Coated Wire ,Galvanized Aluminum Wire | Specifications | L*2*1*1,L*2*1*0.8 |
|---|---|---|---|
| Product Name | Reinforced Gabion Retaining Wall | Application | Gabions,Slope Protection ,Cages |
| Delivery Time | 7 Days For 1x40 HQ Quantity | Package | Package By Inbundles |
| High Light | Slope Stone Cage Wire Mesh,hot dip Stone Cage Wire Mesh,metal cage retaining wall |
||
Product Description

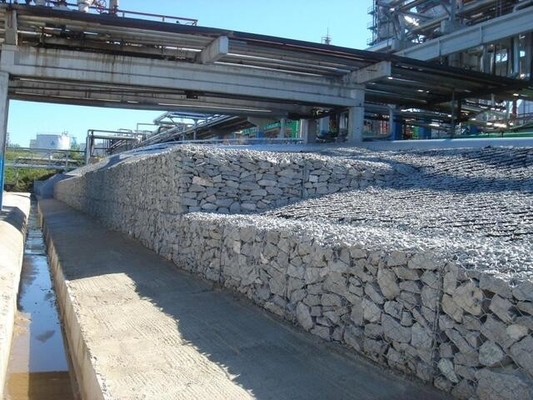

Reinforced gabion retaining wall,New retaining structure
Reinforced gabion retaining wall features
1, durability: the surface of low carbon steel wire by special process thick coating corrosion treatment, durable, according to the structure of the environment, can choose different corrosion treatment products, accustomed to a variety of environment and satisfied with the structural design life requirements.
2, economy: the foundation, stone material requirements are more relaxed, do not need to set drainage hole and filter layer, the construction is simple and fast, so that the cost of induction is low.
3, fast construction speed: reinforced gabion retaining wall device construction can be carried out in dry land and water. The method of filling stone is very flexible, and the general engineering personnel can thoroughly master it through a brief explanation, without special professional construction forces. Not only can completely choose mechanized construction, but also can choose semi-mechanized construction with artificial, in the case of mechanical conditions, can choose the way of manual loading. Construction efficiency is high, compared with the traditional plan to save about one-third of the time.
4, integrity: through the cage will be scattered broken stones together to form a larger unit body, unit body and by binding steel wire firmly combined, so that it has structural integrity.
5, permeability: no need to do drainage system, reinforced gabion retaining wall filling data is solid, size between 100mm ~ 300mm stone, with good permeability.
6, flexible: flexible structure is between the rigid data and loose data between the flexible data, its high flexibility makes the structure can be used to large uneven settlement and can not guess local erosion, the structure can adjust itself, self-healing.
7, ecological and environmental protection: one is to fill the data size, shape requirements are relatively loose, do not need to open the mountain blasting stone, can be tailored to the use of local useless stone resources; Second, filling stone pores can be placed in the soil, providing conditions for plant growth, conducive to ecological rehabilitation; Its third is, muffle sound collect light, close to nature.
Reinforced gabion retaining wall main product specifications
| specifications | specifications | L = length (M) | W = width (M) | H = high (M) | ||||
| L*2*1*1 | ►3 | 2 | I | |||||
| L*2*1*0.8 | ►3 | 2 | 0.8 | |||||
| Note: 6*2*1*1, length 6m, width 2m, height 1m, thickness 1m reinforced stone cage net, wall stone cage internal partition partition according to 1m interval, length and width and height error soil 5%. | ||||||||
| Net pass no. | The product name | Net pass no. | D(mm) | The tolerance | With steel wire surface | |||
| Reinforced stone cage net | 8*10 | 80 | -400 | 2. 7 | ||||
| Wire parameters | Wire type | With steel wire surface | Edge of turbulence wire | Binding wire | ||||
| The diameter of(mm) | 2. 7 | 3.4 | 2. 2 | |||||
| Outer diameter(mm) | 3. 7 | 4.4 | 3. 2 | |||||
| The diameter tolerance(+)mm | 0.08 | 0. 09 | 0. 07 | |||||
| Minimum coating quantity(g/m2) | 245 | 265 | 230 | |||||
| Note: the tensile strength of steel wire should be in the range of 350-550N/mm2. The elongation of steel wire without weaving should not be lower than 1000 %(the elongation of steel wire after weaving should not be lower than 1000 %). The diameter of steel wire refers to before stretching. Wire diameter tolerance and elongation measurements shall be made by random sampling before each batch of wire braiding | ||||||||
| Covering plastic index | indicators | The technical requirements | indicators | The technical quirements | ||||
| color | green | The tensile strength(Mpa) | >20 | |||||
| The density of(g/ cm2) | I. 35-1.4 | Elongation at break(％) | >200 | |||||
| Shore A hardness | 90-100 | Cover thickness of the plastic(mm) | 0. 5 | |||||
