130x150mm Stone Cage Wire Mesh PVC Five Ecological Gabion Wall Cages

Place of Origin CHINA
Brand Name TALIN
Model Number 80x100mm,100x120mm,130x150mm
Minimum Order Quantity 500PCS
Price FOB USD 10-11/PCS
Packaging Details 20000 square meters per 40 feet container
Payment Terms T/T, L/C
Supply Ability 50000 square meters per week
Product Details
Material Low Carbon Steel Wire Aperature 80x100mm,100x120mm,130x150mm
Size 2(3-6)*1*1(0.5) Wire Diameter 2-4mm
Feature Corrosion Resistant Application Protection Engineering
High Light

130x150mm Stone Cage Wire Mesh

,

PVC Stone Cage Wire Mesh

,

Ecological gabion wall cages

Leave a Message
Product Description

Covered plastic five stranded ecological solid shore stone cage net pad



Introduction and process:

Plastic cover five stranded ecological solid shore stone cage mat is made of low carbon steel wire woven, the surface with a layer of plastic layer, plastic layer material can be PVC,PE,PA6 and other anticorrosive plastic material is very good, in order to increase its service life, low carbon steel wire is often anticorrosive galvanized treatment, According to the different thickness of galvanized layer galvanizing, ordinary hot zinc, high hot galvanized and zinc aluminum alloy. The five hinged parts are twisted in pairs by 3*360 degrees, and the general length can reach 45-65 cm. This box makes the overall structure more firm and the performance more stable.



Application:

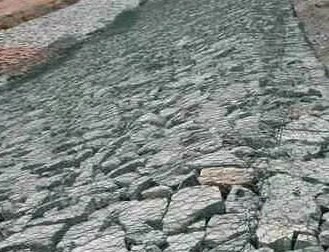

Plastic covered five stranded ecological solid shore stone cage net pad is a kind of stone cage net pad, plastic covered five stranded ecological solid shore stone cage net pad has the effect of embankment erosion. Covering plastic five stranded ecological solid shore stone cage net pad process refers to the special steel wire by special machinery woven into a double stranded, honeycomb mesh mesh, according to the requirements of the engineering design, cutting, design, assembly into the box and loaded stone and other filling materials after the connection into one structure, used as a guard against roadbed protection engineering.



Surface treatment:

1, electric galvanized, the maximum amount of zinc is 10g/m2. Anticorrosion sex difference

2, hot dip galvanized, the maximum amount of zinc can reach 300g/m2. Corrosion resistance is strong

3, Galfan (zinc aluminum alloy), such is divided into two materials, zinc -5% aluminum - mixed rare earth alloy steel wire, zinc -10% aluminum mixed rare earth alloy steel wire, anti-corrosion super,



Common technical parameters



Aperture(mm) Wire Diameter (mm) Size(m) Cover thickness of the plastic (mm)
80*100 2.0-4.0 2(3-6)*1*1(0.5) 0.4-0.6
100*120
130*150
