Machine Woven Double Twisted Hexagonal Sek Gabion Mesh 3x1x1m
| Place of Origin | CHINA |
|---|---|
| Brand Name | TALIN |
| Certification | ISO |
| Model Number | 60x80mm ,70x90mm ,80x100mm,100x120mm,120x150mm |
| Minimum Order Quantity | 1000 PCS |
| Price | FOB $ 11-15 Per PC |
| Packaging Details | 100pcs or 150 pcs per bundle ,20 bundles per 40 feet HQ |
| Delivery Time | 5-8 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 10000 PCS per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Corrosion Resistance ,easily Assembled | Hole Shape | Hexagonal |
|---|---|---|---|
| Material | Low Carbon Steel Wire ,heavy Galvanized Wire,galfan Wire,pvc Coated Wire | Aperature | 4.6×8cm ,8×10cm,10×12cm ,12×15cm |
| Size (L×W ×H) | 5.2×1×0.5M ,2×1×1M ,3×1×0.5M ,3×1×1M ,6×2×0.3M Ect | Wire Guage(mm) | 2.0mm-4.0mm |
| Surface Treatment | Galvanized /PVC Coated | Application | Flood Control ,retaining Wall |
| Color | Silver Or Black/green, Ect | Package | Bundles |
| Certificate | ISO9001:2008 | Delivery | 20'GP Or 40'HQ |
| High Light | twisted hexagonal metal mesh,sek gabion mesh,3x1x1m gabion mesh |
||
Product Description
3*1*1m Machine-woven twisted-twisted hexagonal Seckgabion mesh

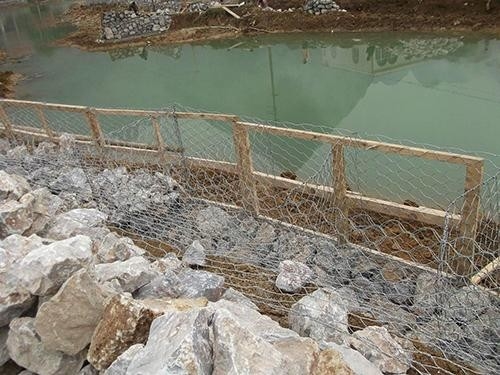

Sek Gabion mesh is composed of mechanical twisted-hexagonal metal mesh surface cylindrical engineering components, which are loaded with stone filling material, a flexible, permeable structure, used in sand prevention and river regulation and other rescue projects.
Seck Gabin network parameters
(1) Aperture: 60*80mm, 80*100mm, 80*120mm, 100*120mm, 120*150mm, 140*160mm, 160*180mm
The length of the double stranded part shall not be less than 50mm to ensure that the metal coating and PVC coating of the stranded part of the steel wire will not be damaged.
(2) Wire diameter: there are three kinds of wire diameters: mesh wire, edge wire and tie wire
1. The range of mesh wire is 1.5mm-4mm
2. The edge wire is generally larger than the mesh wire, thick 0.5mm-1mm
3. The binding wire is generally smaller than the net wire, and the most common is 2.2mm
(3) wire tension: not less than 38kg/m2 380N/mm
(4) Surface treatment
1. Electric galvanizing. The maximum amount of zinc is 10g/m2. Poor corrosion resistance
2. Hot-dip galvanizing. The maximum amount of zinc can reach 300g/m2. It has strong anticorrosion
3. Galfan (zinc aluminum alloy). This is divided into two materials, zinc -5% aluminum - mixed rare earth alloy steel wire, zinc -10% aluminum mixed rare earth alloy steel wire. Super anti-corrosion
4.PVC plastic coated. The thickness of the plastic wrap is generally 1.0mm, for example, 3.7mm after the 2.7mm wrap. Strong anti-corrosion
(5) partition: in the long direction of the stone cage net each meter plus a partition
(6) Size: can be customized
(7) The range of aperture and wire diameter
structure
Seck Gabion mesh in the process of weaving mesh bag, in order to facilitate the knot, mesh bag embedded in the thick wire.
| Type | double twisted woven wire mesh |
| Hole Shape | hexagonal |
| Material | low carbon steel wire ,heavy galvanized wire ,galfan wire ,pvc coated wire |
| Aperature | 6×8cm ,8×10cm,10×12cm ,12×15cm |
| Size (L×W ×H) |
2×1×0.5M ,2×1×1M ,3×1×0.5M ,3×1×1M ,6×2×0.3M |
| Wire Guage | 2.0mm-4.0mm |
| Surface Treatment | Galvanized /PVC Coated |
| Application | flood control ,retaining wall |
| Features | corrosion resistance ,easily assembled |
| Color | silver or black/green ,ect |
FAQ:
Q: Are you a trading company or manufacturer ?
A: We are factory. We are manufacturer of Wire Mesh .
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=100000USD, 100% in advance.
Payment>=100000USD, 30% T/T in advance ,balance against copy of B/L.
