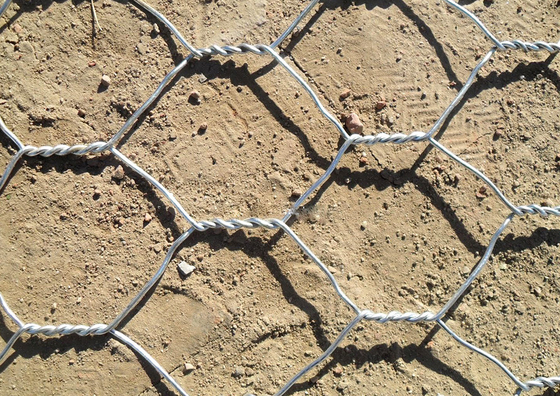

80x100mm Gabion Wire Mesh For Slope Protection / PVC Coated Filled Gabion Baskets

Place of Origin MADE IN CHINA
Brand Name TALIN
Model Number 70x90mm ,60x80mm ,80x100mm,100x120mm
Minimum Order Quantity 500PCS
Price FOB USD 10-11/PCS
Packaging Details 20000 square meters per 40 feet container
Delivery Time 5-8 days
Payment Terms T/T, L/C
Supply Ability 50000 square meters per week
Product Details
Material Heavy Galvanized ,hot Dip Galvanized Wire ,pvc Coated Wire ,Galvanized Aluminum Wire Aperture 80*100mm ,100*120mm ,60*80mm
Product Name Gabion Basket,Stone Cage Wire Mesh ,Gabion Box ,Hexagona Wire Mesh Application Gabions,Slope Protection ,Cages
Delivery Time 7 Days For 40HQ Quantity Package By Bundle
High Light

80x100mm Gabion Wire Mesh

,

Gabion wire mesh for slope protection

,

Filled Gabion Baskets

Leave a Message
Product Description



                      PVC Coated Gabion Mesh 80x100mm to Thailand Market





   Certification:



 1.  All gabion basket are manufactured in accordance with the requirements of BS EN 10223-3:2013.

 2.  All wire is in accordance with BS EN 10218-2:2012 and BS EN 10223-3:2013

with an ultimate tensile strength of between 350 to 500N/mm².

 3.  All wire used in the gabion production or accessories shall be Zinc or Zinc 90% Aluminium 10% coated in accordance with BS EN 10244-2:2009 (Class A) with an additional extruded organic polymer powder coating (grey,green) of 0.5mm nominal radial thickness. This organic polymer powder coating is in accordance with BS EN 10245-2:2011.





 Specification:



     Mesh size:



    60x80mm, 80x100mm,100x120mm



  Mesh wire (mm) Selvedge wire (mm) Lacing wire (mm)
  Galvanized /Galfanbasket 2.4 3.0 2.2
2.7 3.4 2.2
3.0 3.9 2.2
PVC coated basket 2.4/3.4 3.0/4.0 2.2/3.2
2.7/3.7 3.4/4.4 2.2/3.2
3.0/4.0 3.9/4.9 2.2/3.2







   Minimum zinc coating weight of gabion wire



Wire diameter (mm) Zinc coating(g/㎡) Standard
2.2 230 EN10223-3
2.7 245 EN10223-3
3.0 255 EN10223-3
3.4 265 EN10223-3
3.9 275 EN10223-3


     Basket Size



1 x 1 x 1M 1,5 x 1 x 1M
2 x 1 x 1M 3 x 1 x 1M
4 x 1 x 1M 2 x 0,5 x 0,5M
2 x 1 x 0,5M 3 x 1 x 0,5M
4 x 1 x 0,5M 6 x 2 x 0,5M
