1/4 Inch X 1/4 Inch Pvc Welded Wire Mesh Anti Corrosion Beautiful Protective Net
| Place of Origin | CHINA |
|---|---|
| Brand Name | TALIN |
| Model Number | 1/2''x1/2'' ,1/4''x1/4'' ,4/3''x3/4'' ,1''x1''，2"*1", 2"*2", 3"*2", 4"*2", 4"*3", 4"*4" |
| Minimum Order Quantity | 2000 Rolls |
| Price | Negotiable |
| Packaging Details | PVC SHRINK |
| Delivery Time | 10 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000 Rolls per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Quality Low Carbon Steel Wire | Aperature | 1/2''x1/2'' ,1/4''x1/4'' ,4/3''x3/4'' ,1''x1''，2"*1", 2"*2", 3"*2", 4"*2", 4"*3", 4"*4" |
|---|---|---|---|
| Length | 10-50m | Width | 0.6-1.8m |
| Wire Diameter Before Pvc Coating | 0.56-4mm | Wire Diameter After Pvc Coating | 0.9-4.88mm |
| Processing | PVC Coated After Welding Of Steel Wire. Electro Galvanizing, Hot-dip Galvanizing Or PVC Coating Can Be Done Separately. | Color | Green,yellow,blue |
| High Light | 1/4 inch x 1/4 inch pvc welded wire mesh,anti corrosion pvc welded wire mesh,1/4 inch x 1/4 inch plastic coated weld mesh |
||
Product Description

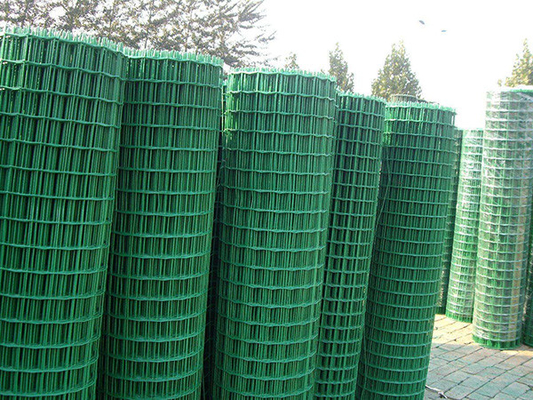

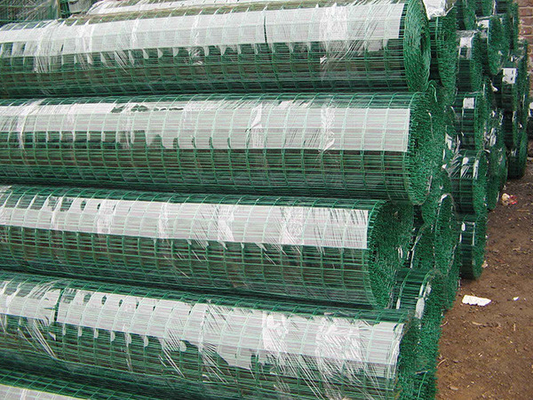

1/4"*1/4" PVC plastic coated anti-corrosion beautiful protective net
The PVC plastic-coated welded wire mesh adopts an advanced double-layer protection system, which can obtain very good adhesion, and the coating color is bright and full. This product fully complies with the requirements of ASTM F668-99a and ASTM Frame work F1063 and other standards, which greatly improves the service life of the isolation barrier product, and also improves the decorative effect of hot-dip galvanized welded wire mesh.
Product Specifications:
|
Mesh size |
Wire Dia. Before coat |
Wire Dia. After coat |
Width |
Length |
|---|---|---|---|---|
| 1/4"x1/4" | 0.56 - 0.71 | 0.90 - 1.05 | 0.6m - 1.8m | 10 - 50m |
| 3/8"x3/8" | 0.64 - 1.07 | 1.00 - 1.52 | ||
| 1/2"x1/2" | 0.71 - 1.65 | 1.10 - 2.20 | ||
| 5/8"x5/8" | 0.81 - 1.65 | 1.22 - 2.30 | ||
| 3/4"x3/4" | 0.81 - 1.65 | 1.24 - 2.40 | ||
| 1" × 1/2" | 0.81 - 1.65 | 1.24 - 2.42 | ||
| 1"x1" | 0.81 - 2.11 | 1.28 - 2.90 | ||
| 1-1/2"x1-1/2" | 1.07 - 2.11 | 1.57 - 2.92 | ||
| 1"x2" | 1.47 - 2.11 | 2.00 - 2.95 | ||
| 2"x2" | 1.65 - 2.77 | 2.20 - 3.61 | ||
| 3"x3" | 1.90 - 3.50 | 2.50 - 4.36 | ||
| 4"x4" | 2.20 - 4.00 | 2.85 - 4.88 |
Plastic coating process: The plastic coated mesh is named because the mesh has undergone a layer of surface treatment on the outside. Take out the mesh to a certain extent, put it into the pvc, pe, pp powder tank, put it out and hang it to form.
The plastic-coated welded wire mesh has good anti-corrosion performance, anti-aging and beautiful appearance. Installation is quick and easy. It can be widely used in fencing, decoration, protection and other facilities in industry, agriculture, municipal administration, transportation and other industries. It has the characteristics of good filtration precision, high load intensity, low cost and easy installation.
FAQ:
Q: Are you a trading company or manufacturer ?
A: We are factory. We are manufacturer of Wire Mesh .
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
