3/4''X3/4'' High Security Mesh Fencing / PVC Coated Galvanised Wire Mesh 30M
Process | Pvc Coated After Welded ,galvanized After Welded ,welded Before Galvanized | Size | 1/4''x1/4'' ,1/2''x1/2'' ,3/4''x3/4'' ,1''x1'' |
---|---|---|---|
Material | Low Carbon Steel Wire ,galvanized Iron Wire ,pvc Coated After Welded | Mesh Width | 3 Feet ,4 Feet ,5 Feet ,6 Feet |
Mesh Length | 8M ,10M ,15M ,20M ,25M ,30M | Package | Water Proof Paper Inside ,pvc Shrink Outside |
Application | Construction Or Fence | Delivery Time | 10 Days For Per 40 HQ |
High Light | 3/4''X3/4'' High Security Mesh Fencing,30M high security mesh fencing,PVC Coated Galvanised Wire Mesh |

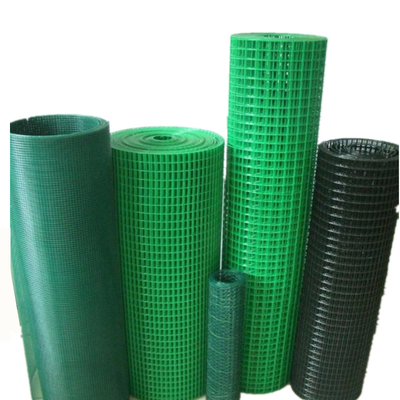

3/4''x3/4'' PVC Coated Welded Wire Mesh with 3 feet width
Welded wire mesh rolls are made of high quality welded wire mesh, with flat even surface, firm structure. It is extensively used in building, food, agriculture and so on.
Material: Galvanized iron wire, low carbon steel wire, PVC coated wire, Stainless steel wire.
Applications: Welded wire mesh is used in industry, agriculture, building, transportation, mining, fishing, poultry, egg baskets, runway enclosures, draining rack, fruit drying screen, fence etc.
Roll Width: 24 inch, 36 inch, 1 Metre, 48 inch, 72 inch or 84 inch.
Roll Length: 100 feet or 150 feet.
Note: other roll width or roll length can be made according to a request.
Mesh Size | Wire Gauge Diameter | ||
In MM | In Inch | BWG No. | MM |
6.4mm | 1/4Inch | BWG24-22 | 0.56mm- 0.71mm |
9.5mm | 3/8Inch | BWG23-19 | 0.64mm - 1.07mm |
12.7mm | 1/2Inch | BWG22-16 | 0.71mm - 1.65mm |
15.9mm | 5/8Inch | BWG21-16 | 0.81mm - 1.65mm |
19.1mm | 3/4Inch | BWG21-16 | 0.81mm - 1.65mm |
25.4x 12.7mm | 1 x 1/2Inch | BWG21-16 | 0.81mm - 1.65mm |
25.4mm | 1Inch | BWG21-14 | 0.81mm - 2.11mm |
38.1mm | 1 1/2Inch | BWG19-14 | 1.07mm - 2.11mm |
25.4x 50.8mm | 1 x 2Inch | BWG17-14 | 1.47mm - 2.11mm |
50.8mm | 2Inch | BWG16-12 | 1.65mm - 2.77mm |
50.8mm to 305mm | 2 to 12Inch | At Request |
