Reno Mattress Gabion Wire Mesh 6x2M Galfan Gabion Baskets

Place of Origin MADE IN CHINA
Brand Name TALIN
Model Number 60x80mm ,70x90mm ,80x100mm,100x120mm
Minimum Order Quantity 1000 PCS
Price FOB USD 10/PC -FOB USD 15/PC
Packaging Details in bundles
Delivery Time 5-8 days
Payment Terms L/C, T/T
Supply Ability 50000 square meters per week
Product Details
Material Heavy Galvanized Coated ,low Carbon Steel Wire Mesh Hole 60x80mm ,70x90mm , 80x100mm ,100x120mm
Size 6x2x0.3M Usage Slope Protection ,Road Protection
Hole Shape Hexagonal Surface Treatment Heavy Galvanized
Weaving Type Double Twist Weaving Package In Bundles
High Light

Reno Mattress Gabion Wire Mesh

,

6x2M Gabion Wire Mesh

,

Galfan Gabion Baskets

Leave a Message
Product Description

                                                            Galfan Coating 6x2M Reno Mattress Gabion



Galfan Mattress Introduction:

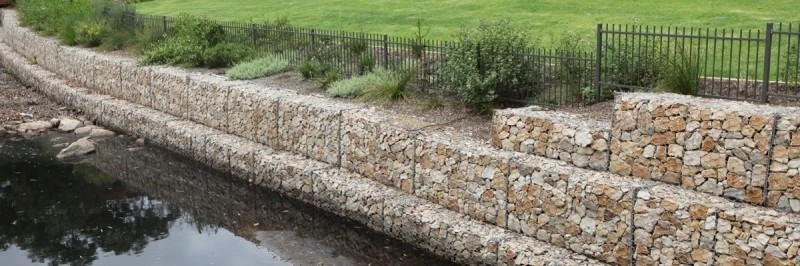

Galfan mattress are manufactured from 95% Zn and 5% Al coated double twist hexagonal wire mesh, and are normally supplied 6 x 2 m dimensions with a thickness less than 500mm. Mattress are filled with stones on site to create a flexible, permeable and monolithic structure for use in river and canal bank protection works as well as erosion control and scour protection of slopes.



The galfan coating provides improved corrosion resistance in comparison to a conventional galvanized coating, combining, in effect, the passive corrosion inhibition of aluminum oxidation with the active and passive effects of zinc. Galfan (95% zinc, 5% aluminium) has proven to be 2 to 3 times more corrosive resistant than the same thickness of hot dipped galvanized. Depending on the environment, it may take 50 years to 150 years for 5% rust to show on the surface of galfan when above ground.


Galfan Mattress material:
1.material:low carbon iron wireQ195
2.wire gauge:2.0mm--5.0mm
3.hole size:60*80,80*100,100*120,120*150
4.mesh size:2*1*1m,3*1*1m,2*1*0.5m,3*1*0.3m or as customer requirement
5.surface treatment:electro galvanized,hot dipped galvanized



Gabion box (mesh size):
80*100mm 100*120mm Mesh Wire diameter 2.7mm zinc coating:60g,245g, ≥270g/m2
Edge wire diameter 3.4mm zinc coating:60g,245g, ≥270g/m2
Tie wire diameter. 2.2mm zinc coating:60g,≥220g/m2
Gabion mattress(mesh size):
60*80mm Mesh Wire diameter 2.2mm zinc coating:60g, ≥220g/m2
Edge wire diameter 2.7mm zinc coating:60g,245g, ≥270g/m2
Tie wire diameter. 2.2mm zinc coating:60g, ≥220g/m2
Special sizes Gabion are available Mesh Wire diameter 2.0-4.0mm superior quality,competitive price and
considerate service
Edge wire diameter 2.7-4.0mm
Tie wire diameter. 2.0-2.2mm



Galfan Mattress various characteristics:

(1) Economic. Just fill the stone into the gabions and seal it.
(2) Simple installation. No special technology needed.
(3) Weather proof under natural destroy, corrosion resistant.
(4) No collapse even under big scope of deforming.
(5) Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.
(6) Good permeation can prevent the damage by hydrostatic.
(7) Less transport freight. It can be folded together for transport and further installation.



Mattress shall be manufactured with a 6 x 8 mesh type having a nominal mesh opening of 64 x 83 mm (2.5 by 3.25 in.). Tolerances on the mesh opening shall not exceed ± 10% on the nominal dimension.



Typical mesh wire, selvedge wire and lacing wire group



2.00 mm, 2.70 mm, 2.00 mm

2.20 mm, 2.70 mm, 2.20 mm



Minimum zinc coating weight of galfan mattress wire



2.00 mm ≥ 215 g/㎡

2.20 mm ≥ 230 g/㎡

2.70 mm ≥ 245 g/㎡



Mesh Opening 60 x 80 mm

Mattress wire diameter tolerance

2.00 mm ± 0.05 mm

2.20 mm ± 0.06 mm

2.70 mm ± 0.06 mm



Typical mattress size (L x W x H)



3 x 2 x 0.3 m with 2 diaphragms

4 x 2 x 0.3 m with 3 diaphragms

5 x 2 x 0.3 m with 4 diaphragms

6 x 2 x 0.3 m with 5 diaphragms

Width and length of the mattress as manufactured shall not differ more than ± 5%, and the height shall not differ more than ± 10% from the ordered size prior to filling.



Gabion Size 2 x 1 x 1 m

Gabion and mattress shall be manufactured with all components mechanically connected at the production facility with the exception of the mattress lid which is produced separately from the base. All gabion and mattress shall be supplied in the collapsed form, either folded and bundled or rolled, for shipping.



Galfan Mattress application:

1) Control and guide of water or flood
2) Flood bank or guiding bank
3) Preventing of rock breaking
4) Water and soil protection
5) Bridge protection
6) Strengthening structure of soil
7) Protection engineering of seaside area
