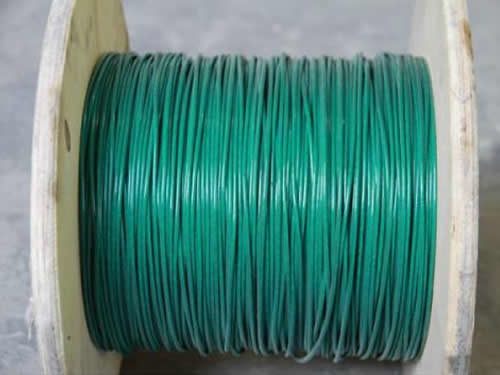

PVC Coated Wire
PVC Coated Wire is manufactured with quality iron wire. PVC is the most popular plastic for coating wires, as it is relatively low in cost, resilient, fire retardant and possesses good insulating properties.
Common colors available for PVC coated wire are green and black, grey, red or yellow. Other colors also available on request.
Inner Wire Guage: BWG4 ~ BWG25
Inner Wire Diameter: 6mm ~ 0.5mm
Tensile Strength: 300~500 N/mm2
Material: low carbon steel wire, Q195,SAE1008 (galvanized steel wire or annealed wire)
Feature: Our PVC wire with good resilient, fire retardant and possesses good insulating properties.
1. Bind with wire
2. plastic film inside and hessian cloth /woven bag outside
4. Other packing according customer`s requirement.
Weight of coil: 0.1-1000kg/coil, can be make as customers’requirement.
PVC Coated Wire Application: The most popular use for PVC coated wire is in the construction of chain link fences for industrial security fences, freeways and tennis courts. It is also used in other applications such as coat hangers and handles, construction building wire,handicrafts, making wire mesh, Marine cable, product packaging, agriculture, animal husbandry and other fields.
|PVC Coated Wire Specification:
|Core Wire Diameter
|P.V.C. Coating Thickness : 0.4mm -0.6mm
