1*1Inch Low Carbon Steel Insulation Welded Steel Wire Mesh For Wall Protection

Place of Origin CHINA
Brand Name TALIN
Minimum Order Quantity 20T
Packaging Details Waterproof Paper,in pallet
Supply Ability 10000 Roll/Rolls Per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Galvanized Iron Square Stainless Steel Construction Security Hole Shape Square
Material Low Carbon Steel Wire, Galvanized Wire, Stainless Steel Wire, Aluminum-magnesium Alloy Wire Feature Easily Assembled, Eco Friendly
Color Silver Usage Protection
Application Construction Security Package Waterproof Paper,in Pallet
Hs Code 7314310000 Weave Welded Wire Mesh
High Light

1*1Inch Welded Steel Wire Mesh

,

Wall Protection Welded Steel Wire Mesh

,

Wall Protection low carbon steel wire mesh

Leave a Message
Product Description

1*1 inch wall protection insulation electric welding net



Wall insulation electric welding net is also called external wall insulation electric welding net, plaster wall net, plaster wire mesh, wall wire mesh, small wire welding net, powdery wall net, hanging gray net. When "wall insulation electric welding net" is used in the exterior wall external insulation high level plaster brick system, the four corners net is laid in the anti-crack mortar, so that the anti-crack protection layer of the exterior wall insulation brick is effectively strengthened, and then the hot-dip galvanized steel wire mesh and structure are directly fixed through the anchoring parts, transferring the surface load agent, the surface load is transferred to the base wall, the insulation layer can also be effectively protected. When subjected to external forces, the damage occurs in and is absorbed by the anti-cracking protective layer. Effectively improve the wall cracking bulge phenomenon, wall more firm. Common specifications of wall insulation welding mesh: 1/2 1x1 "2X2" width 0.914m 1.2m length unlimited.
Wall insulation electric welding net is mainly used in general building exterior wall, pouring concrete, high-rise residential buildings, etc., in the insulation system plays an important structural role. Laid in the anti-crack mortar, so that the external wall insulation brick anti-crack protection layer is effectively strengthened, and then through the anchorage will be hot-dip galvanized steel wire mesh and structure directly fixed, transfer the surface load agent, the surface load transfer to the base wall, insulation layer can also be effectively protected, when the external force, damage occurs in the anti-crack protection layer and is absorbed by the anti-crack protection layer. Due to the good gripping force of hot-dip galvanized steel wire mesh and cement anti-crack mortar, hot-dip galvanized steel wire mesh has a reasonable enhancement of the horizontal and vertical tensile strength, greatly improving the strength of the surface brick paste base. Due to the use of low carbon quality material as raw materials, make it unique iron screen does not have flexibility, to determine its plasticity in the use process, so that it can be used for deep processing and manufacturing of hardware technology, complex wall swing, underground anti-leakage anti-cracking, lightweight mesh body, so that the cost is much lower than the cost of iron screen, more can understand its economy and benefits.



Product name
Welded Wire Mesh
Welding type
1-Electro galvanized wire mesh(welded before galvanized, welded after galvanized)
2-Hot-dipped galvanized wire mesh(welded before galvanized, welded after galvanized)
3-PVC coated welded wire mesh
4-Stainless steel wire welded mesh
Material
Low-Carbon Iron Wire
Surface treatment
Black, E.G , H.D.G, PVC coated
Application
Construction Wire Mesh
Length
5m,10m,25m,30metc
Width
0.5-1.8m

Products Specification

Specification of Welded Wire Mesh
Opening Wire Diameter Width
0.4-2M

Length
5-50m
electric galvanized before welded,
electric galvanized after welded,
hot-dipped galvanized before welded,
hot-dipped galvanized after welded,
PVC coated,
Stainless steel wire
In inch In metric unit
1/4" x 1/4" 6.4 x 6.4mm BWG24-22
3/8" x 3/8" 10.6x 10.6mm BWG22-19
1/2" x 1/2" 12.7 x 12.7mm BWG23-16
5/8" x 5/8" 16x 16mm BWG21-18
3/4" x 3/4" 19.1 x 19.1mm BWG21-16
1" x 1/2" 25.4x 12.7mm BWG21-16
1-1/2" x 1-1/2" 38 x 38mm BWG19-14
1" x 2" 25.4 x 50.8mm BWG16-14
2" x 2" 50.8 x 50.8mm BWG15-12
2" x 4" 50.8 x 101.6mm BWG15-12
4" x 4" 101.6 x 101.6mm BWG15-12
4" x 6" 101.6 x 152.4mm BWG15-12
6" x 6" 152.4 x 152.4mm BWG15-12
6" x 8" 152.4 x 203.2mm BWG14-12
Note: Special specifications can be made according to customers requires.

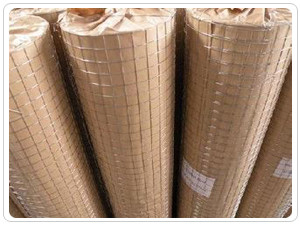

1*1Inch Low Carbon Steel Insulation Welded Steel Wire Mesh For Wall Protection 0

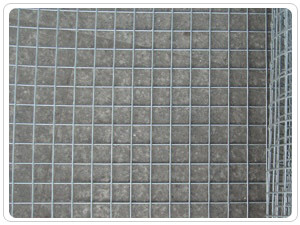

1*1Inch Low Carbon Steel Insulation Welded Steel Wire Mesh For Wall Protection 1





FAQ

Q:How can I place the order?

A:1) After all details of the order were confirmed, we will send you our signed and stamped proforma invoice.
2) You can transfer the deposit by T/T (Telegraphic Transfer), Paypal,   etc.
3) In the receipt of your deposit, we will arrange the production and will send you the pictures of angel sculpture white marble headstone from each angles for the ready goods after it was finished. The balance payment will be paid after your confirmation, and we will arrange the air freight or sea freight accordingly to the CBM of the goods.



Q:Could you supply Door-to-Door Delivery?
A:Yes, we are very good at Door to Door Delivery, please inform me your detailed address, then I will quote you the freight cost to your home directly.

Q:How do we ship the goods?
A:We will quote you the ocean freight, if the goods is not large, it will be loaded by air freight or Express. No matter any ways of transportation, our forwarders will provide professional service to ensure the goods arrives at your place smoothly.
