40*80mm Flame Retardant Expanded Wire Mesh Anti Slip Walkway Step Mesh
| Place of Origin | MADE IN CHINA |
|---|---|
| Brand Name | TALIN |
| Minimum Order Quantity | 500PCS |
| Price | FOB USD 10-50/PCS |
| Packaging Details | Wooden splints |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Low Carbon Steel Plate, Stainless Steel Plate, Aluminum Plate | Thickness | 0.3-8mm |
|---|---|---|---|
| Short Way Of Mesh | 2-50mm | Long Way Of Way | 4-100mm |
| Weave | Stamping And Stretching | Application | Protecting Mesh, Filters, Screen, Barbecue Mesh |
| Surface Treatment | Hot Dipped Galvanized, PVC Powder Coated | Color | Could Be Made By RAL Colors |
| Length | 4"-10" | Width | 4"-8" |
| Aperture | 10x25mm 15x25mm 15x30mm 20x40mm 25x40mm 25x50mm 30x50mm 24x60mm 30x60mm 35x60mm 40x60mm 30x80mm 32x80mm 38x80mm 40x80mm 38x100mm 40x100mm 45x100mm 50x100mm 60x100mm 60x120mm 55x150 Mm60x150mm | Hole Shape | Diamond Hole, Square Hole, Hexagonal Hole |
| High Light | Flame Retardant Expanded Wire Mesh,80mm Expanded Wire Mesh,80mm Step Mesh |
||
Product Description

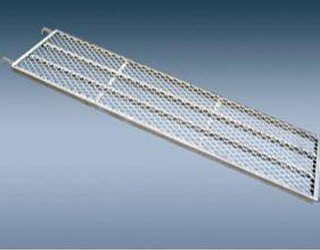

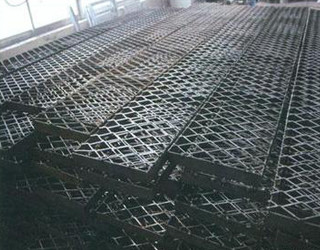

40*80mm flame retardant bearing anti-slip walkway stepping mesh
Walkway step mesh, mainly used for building exterior multi-layer scaffolding pedal, by high quality low carbon steel plate punching shear stretching and forming, the surface is wavy, the net surface is composed of uniform diamond mesh up and down the connection, the net surface is durable, with excellent anti-slip, wear-resistant effect.
Product Specifications:
Material: high quality Q235 low carbon steel sheet
Hole shape: diamond shape
Long pitch: 80mm
Short pitch: 40mm
Thickness: 4.0mm can be processed according to requirements of 3.0-6.0mm different thickness
Size: 1200x700mm 1200x750mm 1000x700mm 1000x750mm 800x700mm 800x750mm and can be processed according to the requirements of any size of scaffolding and bagging screen
Scaffold steel plate mesh product features: strong flame retardant, large bearing gravity, non-slip surface, wear resistance, mesh density, uniform, no fracture, strong structure, tensile strength and toughness.
SWD (Short Way of the Diamond) is the distance from the middle of the bond on one side to the middle of the bond on the opposite side.
LWD (Long Way of the Diamond) is the distance across the largest dimension of the diamond measured halfway between the diamonds.
SWO (Short Way of the Opening) is the width of the opening of the shortest side of the diamond. SWO does not include the strand width, where SWD (Short Way of the Diamond) does.
LWO (Long Way of the Opening) is the length of the opening of the longest side of the diamond. LWO does not include the strand width, where LWD (Long Way of the Diamond) does.
StrandExpanded metal is composed of strands and bonds. Strands form the sides of the expanded metal openings. .
Thickness is the measurement from the top surface to bottom surface of the expanded metal piece.
Main specifications and models of expanded metal mesh:
| Specifications | |
| Material | Low carbon steel, stainless steel, Aluminum Alloy |
| Thickness | 0.5-8mm |
| Strand Width | 0.3-9mm |
| SWD | 2-56mm |
| LWD | 3-150mm |
| Panel Width | 4ft-8ft |
| Panel Length | 4ft-10ft |
| Opening Area | 45%-85% |
| Hole Shapes | Square, Diamond,Triangle, Hexagonal, Round,Scale |
| Surface treatment | Hot dipped Glavanized, Electric galvanized, PVC coated |
| Colors | Could be made by RAL colors |
| Packing | Iron or wooden pallet, wooden case |
FAQ:
Q: Are you a trading company or manufacturer ?
A: We are factory. We are manufacturer of Wire Mesh .
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=100000USD, 100% in advance.
Payment>=100000USD, 30% T/T in advance ,balance against copy of B/L.
