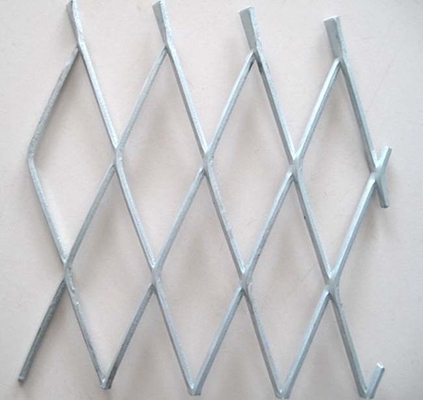

Aperture 20*40mm stainless steel expanded metal mesh net For Machinery Protective
| Place of Origin | MADE IN CHINA |
|---|---|
| Brand Name | TALIN |
| Minimum Order Quantity | 500PCS |
| Price | FOB USD 10-50/PCS |
| Packaging Details | Wooden splints |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Low Carbon Steel Plate, Stainless Steel Plate, Aluminum Plate | Thickness | 0.3-8mm |
|---|---|---|---|
| Short Way Of Mesh | 2-50mm | Long Way Of Way | 4-100mm |
| Weave | Stamping And Stretching | Application | Protecting Mesh, Filters, Screen, Barbecue Mesh |
| Surface Treatment | Hot Dipped Galvanized, PVC Powder Coated | Color | Could Be Made By RAL Colors |
| Length | 4"-10" | Width | 4"-8" |
| Aperture | 10x25mm 15x25mm 15x30mm 20x40mm 25x40mm 25x50mm 30x50mm 24x60mm 30x60mm 35x60mm 40x60mm 30x80mm 32x80mm 38x80mm 40x80mm 38x100mm 40x100mm 45x100mm 50x100mm 60x100mm 60x120mm 55x150 Mm60x150mm | Hole Shape | Diamond Hole, Square Hole, Hexagonal Hole |
| High Light | 40mm Stainless Steel Expanded Metal Mesh,Machinery Protective Metal Mesh Net,20mm Stainless Steel Expanded Metal Mesh |
||
Product Description
Aperture 20*40mm industrial machinery protective stainless steel plate net
Material: 302 304 304L 316 316L stainless steel plate.
Specifications:
Plate thickness: d: 0.5-8mm.
Length pitch: TB: 12.5-200mm.
Short pitch TL: 5-80mm.
Net surface size: length (600-4000mm) x width (600-2000mm).
Advantages: mesh uniform, mesh surface flat and high friction coefficient, high strength is also used in cutting and manufacturing workpiece. Strong and durable, beautiful appearance, saving material space, is a good material for environmental protection and energy saving.
Purpose: Stainless steel plate net can be used for escalator, channel, mine, locomotive, road, municipal facilities, residential area, can also be used for filter element, medicine, paper making, filtration, packaging nets, mechanical facilities protection, handicraft manufacturing, high-grade sound box net cover, decoration, basket, basket and road protection, tank car foot net, Heavy machinery and boilers, oil mines, locomotives, ten thousand ton ships and other work platforms, escalators, walkways.
SWD (Short Way of the Diamond) is the distance from the middle of the bond on one side to the middle of the bond on the opposite side.
LWD (Long Way of the Diamond) is the distance across the largest dimension of the diamond measured halfway between the diamonds.
SWO (Short Way of the Opening) is the width of the opening of the shortest side of the diamond. SWO does not include the strand width, where SWD (Short Way of the Diamond) does.
LWO (Long Way of the Opening) is the length of the opening of the longest side of the diamond. LWO does not include the strand width, where LWD (Long Way of the Diamond) does.
StrandExpanded metal is composed of strands and bonds. Strands form the sides of the expanded metal openings. .
Thickness is the measurement from the top surface to bottom surface of the expanded metal piece.
Main specifications and models of expanded metal mesh:
| Specifications | |
| Material | Low carbon steel, stainless steel, Aluminum Alloy |
| Thickness | 0.5-8mm |
| Strand Width | 0.3-9mm |
| SWD | 2-56mm |
| LWD | 3-150mm |
| Panel Width | 4ft-8ft |
| Panel Length | 4ft-10ft |
| Opening Area | 45%-85% |
| Hole Shapes | Square, Diamond,Triangle, Hexagonal, Round,Scale |
| Surface treatment | Hot dipped Glavanized, Electric galvanized, PVC coated |
| Colors | Could be made by RAL colors |
| Packing | Iron or wooden pallet, wooden case |
FAQ:
Q: Are you a trading company or manufacturer ?
A: We are factory. We are manufacturer of Wire Mesh .
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=100000USD, 100% in advance.
Payment>=100000USD, 30% T/T in advance ,balance against copy of B/L.
