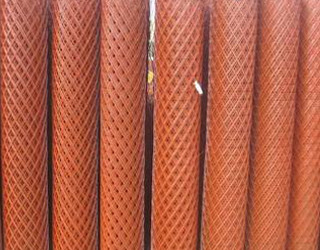

0.3mm-8mm metal Expanded Wire Mesh Net By Dipping Plastic corrosion proof
| Place of Origin | MADE IN CHINA |
|---|---|
| Brand Name | TALIN |
| Minimum Order Quantity | 500PCS |
| Price | FOB USD 10-50/PCS |
| Packaging Details | Wooden splints |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Low Carbon Steel Plate, Stainless Steel Plate, Aluminum Plate | Thickness | 0.3-8mm |
|---|---|---|---|
| Short Way Of Mesh | 2-50mm | Long Way Of Way | 4-100mm |
| Weave | Stamping And Stretching | Application | Protecting Mesh, Filters, Screen, Barbecue Mesh |
| Surface Treatment | Hot Dipped Galvanized, PVC Powder Coated | Color | Could Be Made By RAL Colors |
| Length | 4"-10" | Width | 4"-8" |
| Aperture | 10x25mm 15x25mm 15x30mm 20x40mm 25x40mm 25x50mm 30x50mm 24x60mm 30x60mm 35x60mm 40x60mm 30x80mm 32x80mm 38x80mm 40x80mm 38x100mm 40x100mm 45x100mm 50x100mm 60x100mm 60x120mm 55x150 Mm60x150mm | Hole Shape | Diamond Hole, Square Hole, Hexagonal Hole |
| High Light | 0.3mm Metal Expanded Wire Mesh,Expanded Wire Mesh Corrosion Proof,expanded metal net Corrosion Proof |
||
Product Description

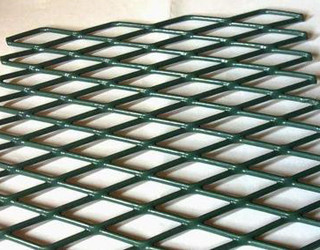

Protective steel plate net by dipping plastic anticorrosion treatment
The surface of the steel mesh is dipped in plastic. This layer of plastic is about 0.1mm thick, the color is green, red, white and other colors, special colors can be customized. The material of plastic is PVC plastic.
Materials :PVC plastic, carbon steel plate, stainless steel plate, iron plate, copper plate, aluminum plate, titanium plate, nickel plate and so on.
Features:
The surface of steel plate mesh is impregnated with plastic anti-corrosion treatment, which has strong anti-corrosion and anti-oxidation and long service life. Bright color, beautiful and generous, anticorrosion and rust proof, do not fade, anti - UV characteristics. Outdoor UV protection for 30 years.
Process flow:
(1) First put the steel plate mesh flat in the plastic immersion furnace, and the temperature rises to 300-600 degrees (depending on the thickness of the steel plate mesh) for about two hours.
(2) After the temperature of the steel plate mesh is reached, the steel plate mesh is placed flat in the plastic slot for about five seconds. Now the surface of the steel plate mesh has a layer of burr plastic powder
(3) Hang the steel plate mesh vertically on the bracket for about half an hour, and the surface of the steel plate mesh is slightly smooth and flat.
(4) Push the bracket into the curing furnace for half an hour, and control the temperature of sulfur sulfide at about 200 degrees.
(5) After half an hour out of the oven. Now the surface of the steel plate mesh is smooth, smooth, no burr.
Purpose:
It is widely used in the protection of large heavy machinery and equipment, handicraft manufacturing, high-grade seal box net cover, highway guardrail, sports place purse Seine, road green belt protective net. It can also be used for filter element, medicine, papermaking, filtration, breeding, packaging nets, mechanical facilities protection, workshop partition protection, decoration, child seats, baskets, baskets and so on
SWD (Short Way of the Diamond) is the distance from the middle of the bond on one side to the middle of the bond on the opposite side.
LWD (Long Way of the Diamond) is the distance across the largest dimension of the diamond measured halfway between the diamonds.
SWO (Short Way of the Opening) is the width of the opening of the shortest side of the diamond. SWO does not include the strand width, where SWD (Short Way of the Diamond) does.
LWO (Long Way of the Opening) is the length of the opening of the longest side of the diamond. LWO does not include the strand width, where LWD (Long Way of the Diamond) does.
StrandExpanded metal is composed of strands and bonds. Strands form the sides of the expanded metal openings. .
Thickness is the measurement from the top surface to bottom surface of the expanded metal piece.
Main specifications and models of expanded metal mesh:
| Specifications | |
| Material | Low carbon steel, stainless steel, Aluminum Alloy |
| Thickness | 0.5-8mm |
| Strand Width | 0.3-9mm |
| SWD | 2-56mm |
| LWD | 3-150mm |
| Panel Width | 4ft-8ft |
| Panel Length | 4ft-10ft |
| Opening Area | 45%-85% |
| Hole Shapes | Square, Diamond,Triangle, Hexagonal, Round,Scale |
| Surface treatment | Hot dipped Glavanized, Electric galvanized, PVC coated |
| Colors | Could be made by RAL colors |
| Packing | Iron or wooden pallet, wooden case |
FAQ:
Q: Are you a trading company or manufacturer ?
A: We are factory. We are manufacturer of Wire Mesh .
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=100000USD, 100% in advance.
Payment>=100000USD, 30% T/T in advance ,balance against copy of B/L.
