1x2 Welded Steel Wire Mesh Square Hot Dipped Galvanized Net

Place of Origin CHINA
Model Number 1/4", 3/8", 5/8", 1/2", 3/4"
Packaging Details plastic film inside and hessian cloth /woven bag outside
Delivery Time 8-15work days
Supply Ability 3*20GP/week
Product Details
Name Square Hot-Dipped Galvanized Welded Wire Mesh Material Low Carbon Steel
Speciality Anti-Corrosion Characteristic Stable Structure
Transport Package Customizable Feature Rust Resistance
Kinds Rolls And Panels Hs Code 7314310000
Sample Available Width 0.914m,1.2m,1.5m
High Light

1x2 welded steel wire mesh

,

hdg welded steel wire mesh

,

welded hot dipped galvanized wire mesh

Leave a Message
Product Description

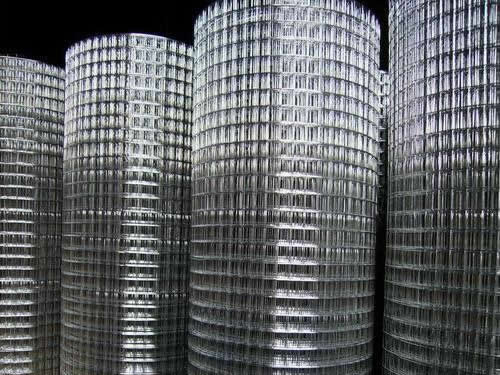

Square Hot-Dipped Galvanized Welded Wire Mesh/Net



1) Material about welded wire mesh

Electro galvanized wire, hot-dipped galvanized.

We choose the best low carbon wire or stainless steel wire material available in China. The high quality & reasonable price product is from the right material.

[Electro galvanized]
Electro galvanizing, uniform coating and thin thickness. Coating are usually only 3-15 microns with bright appearance. Common electro galvanized wire on zinc amount is 8-13 G/M².

[Hot-dipped galvanized]
Hot-dipped galvanized, coated thickness and nonuniform coating. Coating are usually 45-300 microns with darker color and good corrosion resistance. Hot-DIP galvanized wire amout of zinc: 30-60 G/M²

2) Welding Type

Electro galvanized before welded wire mesh

Electro galvanized after welded wire mesh

Hot-dipped galvanized before welded wire mesh

Hot-dipped galvanized after welded wire mesh

Iron/galvanized wire+PVC coated

Stainless steel 304, 316 wire

3) Specification

Welded Wire Mesh
In inch In metric unit(mm) Wire Diameter1/4" X
1/4"6.4 mm X 6.4mm 22, 23, 24
3/8" X 3/8" 10.6mm X 10.6mm 19, 20, 21, 22
1/2" X 1/2" 12.7mm X 12.7mm 16, 17, 18, 19, 20, 21, 22, 23
5/8" X 5/8" 16mm X 16mm 18, 19, 20, 21,
3/4" X 3/4" 19.1mm X 19.1mm 16, 17, 18, 19, 20, 21
1" X 1/2" 25.4mm X 12.7mm 16, 17, 18, 19, 20, 21
1-1/2" X 1-1/2" 38mm X 38mm 14, 15, 16, 17, 18, 19
1" X 2" 25.4mm X 50.8mm 14, 15, 16
2" X 2" 50.8mm X 50.8mm 12, 13, 14, 15, 16
Galvanized Fencing Mesh
In inch In metric unit(mm) Wire Diameter
2" X 3" 50mm X 75mm 2.0mm, 2.5mm, 1.65mm
3" X 3" 75mm X 756mm 2.67mm, 2.41mm, 2.11mm, 1.83mm, 1.65mm
2" X 4" 50mm X 100mm 2.11mm, 2.5mm
4" X 4" 100mm X 100mm 2.0mm, 2.5mm
PVC Coated Welded Mesh:
In inch In metric unit(mm) Wire Diameter1/2" X
1/2"12 .7mm X 12.7mm 16, 17, 18, 19, 20, 21
3/4" X 3/4" 19mm X 19mm 16, 17, 18, 19, 20, 21
1" X 1" 25.4mm X 25.4mm 15, 16, 17, 18, 19, 20











1x2 Welded Steel Wire Mesh Square Hot Dipped Galvanized Net 0

1x2 Welded Steel Wire Mesh Square Hot Dipped Galvanized Net 1



FAQ:



1. Are you a manufacturer?
Yes, we have our own factory and have about 12 years of professional experience in this field.

2. If I need the lowest quotation, what information should I provide?
The specifications of the wire mesh, such as the material, the number of the wire mesh, the diameter of the wire, the hole size, the width, the number, and the surface treatment. We will provide the official quotation after receiving the inquiry.

3. What is your delivery time?
We always prepare enough stock materials to meet your urgent needs. The fastest delivery time is only 7-14 days. After placing the order, we will send the exact delivery time and production schedule.

4. How to transport the finished wire mesh?
Usually sailing at sea.

5. What is your payment term?
Normally, our payment term is 30% in advance by T/T, and the balance is paid before loading or with a copy of the bill of lading. Other payment terms can be discussed.

6.Can you provide free samples?
Samples provide by free, but shipping cost you have to pay! Hope you can understand.
