Aluminium Hot Dip Galvanized Expanded Wire Mesh Heavy Duty 10x25mm

Place of Origin MADE IN CHINA
Brand Name TALIN
Minimum Order Quantity 500PCS
Price FOB USD 10-50/PCS
Packaging Details Wooden splints

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Low Carbon Steel Plate, Stainless Steel Plate, Aluminum Plate Thickness 0.3-8mm
Short Way Of Mesh 2-50mm Long Way Of Way 4-100mm
Weave Stamping And Stretching Application Protecting Mesh, Filters, Screen, Barbecue Mesh
Surface Treatment Hot Dipped Galvanized, PVC Powder Coated Color Could Be Made By RAL Colors
Length 4"-10" Width 4"-8"
Aperture 10x25mm 15x25mm 15x30mm 20x40mm 25x40mm 25x50mm 30x50mm 24x60mm 30x60mm 35x60mm 40x60mm 30x80mm 32x80mm 38x80mm 40x80mm 38x100mm 40x100mm 45x100mm 50x100mm 60x100mm 60x120mm 55x150 Mm60x150mm Hole Shape Diamond Hole, Square Hole, Hexagonal Hole
High Light

10x25mm expanded wire mesh

,

hot dip galvanized expanded wire mesh

,

heavy duty aluminium expanded metal mesh

Leave a Message
Product Description

Heavy duty low carbon expanded metal mesh/Steel Expanded Mesh​



Hot-dip galvanized heavy-duty expanded metal mesh is a type of expanded metal mesh, it is a metal mesh, it also has some other names called expanded metal mesh, diamond mesh, iron mesh, etc. Most of these names are based on it The form or the name used above, the main purpose of heavy-duty expanded metal mesh is a safety net, which is used for roads, railways, or some water conservancy and electric power facilities to ensure the normal operation of roads, railways and other facilities.

The schematic diagram of the expanded metal mesh is as follows:

Aluminium Hot Dip Galvanized Expanded Wire Mesh Heavy Duty 10x25mm 0

SWD (Short Way of the Diamond) is the distance from the middle of the bond on one side to the middle of the bond on the opposite side.
LWD (Long Way of the Diamond) is the distance across the largest dimension of the diamond measured halfway between the diamonds.
SWO (Short Way of the Opening) is the width of the opening of the shortest side of the diamond. SWO does not include the strand width, where SWD (Short Way of the Diamond) does.
LWO (Long Way of the Opening) is the length of the opening of the longest side of the diamond. LWO does not include the strand width, where LWD (Long Way of the Diamond) does.

StrandExpanded metal is composed of strands and bonds. Strands form the sides of the expanded metal openings. .
Thickness is the measurement from the top surface to bottom surface of the expanded metal piece.

Main specifications and models of expanded metal mesh:

Specifications
Material Low carbon steel, stainless steel, Aluminum Alloy
Thickness 0.5-8mm
Strand Width 0.3-9mm
SWD 2-56mm
LWD 3-150mm
Panel Width 4ft-8ft
Panel Length 4ft-10ft
Opening Area 45%-85%
Hole Shapes Square, Diamond,Triangle, Hexagonal, Round,Scale
Surface treatment Hot dipped Glavanized, Electric galvanized, PVC coated
Colors Could be made by RAL colors
Packing Iron or wooden pallet, wooden case

Hot-dip galvanized heavy-duty steel mesh can be used for oil tanker pedal nets, heavy machinery and boilers, oil mines, locomotives, 10,000-ton ships and other working platforms, escalators, walkways. It can also be used in the construction industry, highways and bridges to make steel bars for railways.

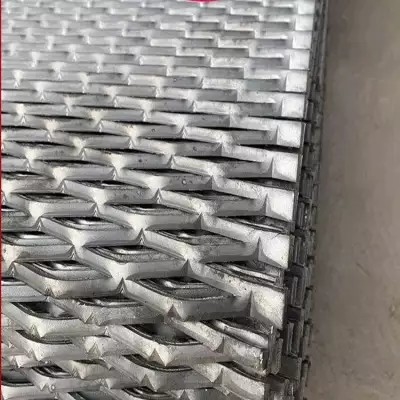

Aluminium Hot Dip Galvanized Expanded Wire Mesh Heavy Duty 10x25mm 1Aluminium Hot Dip Galvanized Expanded Wire Mesh Heavy Duty 10x25mm 2
