Low Carbon Steel Diamond Gi Expanded Metal Mesh Slope Protection

Place of Origin MADE IN CHINA
Brand Name TALIN
Minimum Order Quantity 500PCS
Price FOB USD 10-50/PCS
Packaging Details Wooden splints
Product Details
Material Low Carbon Steel Plate, Stainless Steel Plate, Aluminum Plate Thickness 0.3-8mm
Short Way Of Mesh 2-50mm Long Way Of Way 4-100mm
Weave Stamping And Stretching Application Protecting Mesh, Filters, Screen, Barbecue Mesh
Surface Treatment Hot Dipped Galvanized, PVC Powder Coated Color Could Be Made By RAL Colors
Aperture 10x25mm 15x25mm 15x30mm 20x40mm 25x40mm 25x50mm 30x50mm 24x60mm 30x60mm 35x60mm 40x60mm 30x80mm 32x80mm 38x80mm 40x80mm 38x100mm 40x100mm 45x100mm 50x100mm 60x100mm 60x120mm 55x150 Mm60x150mm Hole Shape Diamond Hole, Square Hole, Hexagonal Hole
High Light

0.3mm thick gi expanded metal mesh

,

slope protection gi expanded metal mesh

,

gi slope protection expanded wire mesh

Leave a Message
Product Description

Low carbon steel diamond expanded metal mesh for slope protection



Slope protection steel mesh is the abbreviation of steel mesh for foundation pit support and sprayed concrete. According to the thickness of the steel plate, it belongs to the light steel mesh in the diamond-shaped steel mesh series.

The schematic diagram of the expanded metal mesh is as follows:

Low Carbon Steel Diamond Gi Expanded Metal Mesh Slope Protection 0

SWD (Short Way of the Diamond) is the distance from the middle of the bond on one side to the middle of the bond on the opposite side.
LWD (Long Way of the Diamond) is the distance across the largest dimension of the diamond measured halfway between the diamonds.
SWO (Short Way of the Opening) is the width of the opening of the shortest side of the diamond. SWO does not include the strand width, where SWD (Short Way of the Diamond) does.
LWO (Long Way of the Opening) is the length of the opening of the longest side of the diamond. LWO does not include the strand width, where LWD (Long Way of the Diamond) does.

StrandExpanded metal is composed of strands and bonds. Strands form the sides of the expanded metal openings. .
Thickness is the measurement from the top surface to bottom surface of the expanded metal piece.

Main specifications and models of expanded metal mesh:

Specifications
Material Low carbon steel, stainless steel, Aluminum Alloy
Thickness 0.5-8mm
Strand Width 0.3-9mm
SWD 2-56mm
LWD 3-150mm
Panel Width 4ft-8ft
Panel Length 4ft-10ft
Opening Area 45%-85%
Hole Shapes Square, Diamond,Triangle, Hexagonal, Round,Scale
Surface treatment Hot dipped Glavanized, Electric galvanized, PVC coated
Colors Could be made by RAL colors
Packing Iron or wooden pallet, wooden case

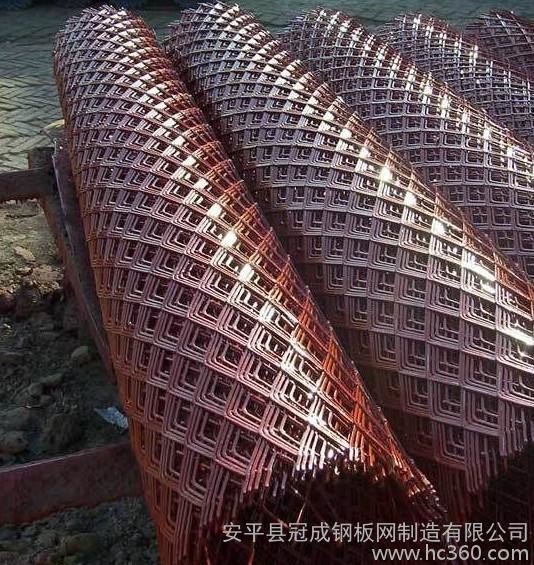

Slope protection expanded metal mesh is mainly used for various shotcrete supports for foundation pit support, shotcrete for highway side slope support, residential pavement hardening reinforcement, roof pouring reinforcement and other shotcrete supports to enhance tensile strength and prevent cracks from collapsing .

Low Carbon Steel Diamond Gi Expanded Metal Mesh Slope Protection 1Low Carbon Steel Diamond Gi Expanded Metal Mesh Slope Protection 2
