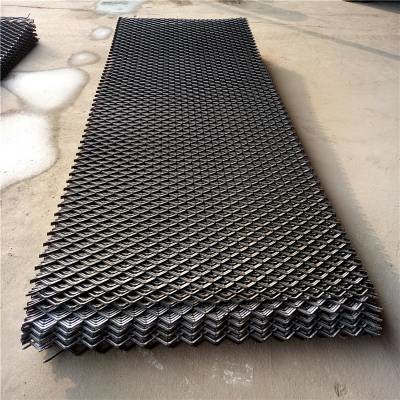

Low Carbon Steel 4"-8" Diamond Hole Expanded Metal Mesh Hot Dip Galvanized
| Place of Origin | MADE IN CHINA |
|---|---|
| Brand Name | TALIN |
| Minimum Order Quantity | 500PCS |
| Price | FOB USD 10-50/PCS |
| Packaging Details | Wooden splints |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Low Carbon Steel Plate, Stainless Steel Plate, Aluminum Plate | Thickness | 0.3-8mm |
|---|---|---|---|
| Short Way Of Mesh | 2-50mm | Long Way Of Way | 4-100mm |
| Weave | Stamping And Stretching | Application | Protecting Mesh, Filters, Screen, Barbecue Mesh |
| Surface Treatment | Hot Dipped Galvanized, PVC Powder Coated | Color | Could Be Made By RAL Colors |
| Length | 4"-10" | Width | 4"-8" |
| Aperture | 10x25mm 15x25mm 15x30mm 20x40mm 25x40mm 25x50mm 30x50mm 24x60mm 30x60mm 35x60mm 40x60mm 30x80mm 32x80mm 38x80mm 40x80mm 38x100mm 40x100mm 45x100mm 50x100mm 60x100mm 60x120mm 55x150 Mm60x150mm | Hole Shape | Diamond Hole, Square Hole, Hexagonal Hole |
| High Light | 4" diamond hole expanded metal mesh,hdg diamond hole expanded metal mesh,galvanised expanded metal walkway mesh |
||
Product Description
4"-8" Hot-Dip Galvanized Low Carbon Steel Expanded Mesh
Expanded metal mesh: Expanded metal mesh is a variety in the metal screen industry. Also known as metal mesh, diamond mesh, iron mesh, metal expansion mesh, heavy steel mesh, pedal mesh, punched aluminum mesh, stainless steel expanded mesh, granary mesh, antenna mesh, filter mesh, audio mesh, etc. Introduction to the use of expanded metal mesh: Widely used in highways, railways, civil buildings, water conservancy and other construction, various.
The schematic diagram of the expanded metal mesh is as follows:
SWD (Short Way of the Diamond) is the distance from the middle of the bond on one side to the middle of the bond on the opposite side.
LWD (Long Way of the Diamond) is the distance across the largest dimension of the diamond measured halfway between the diamonds.
SWO (Short Way of the Opening) is the width of the opening of the shortest side of the diamond. SWO does not include the strand width, where SWD (Short Way of the Diamond) does.
LWO (Long Way of the Opening) is the length of the opening of the longest side of the diamond. LWO does not include the strand width, where LWD (Long Way of the Diamond) does.
StrandExpanded metal is composed of strands and bonds. Strands form the sides of the expanded metal openings. .
Thickness is the measurement from the top surface to bottom surface of the expanded metal piece.
Main specifications and models of expanded metal mesh:
| Specifications | |
| Material | Low carbon steel, stainless steel, Aluminum Alloy |
| Thickness | 0.5-8mm |
| Strand Width | 0.3-9mm |
| SWD | 2-56mm |
| LWD | 3-150mm |
| Panel Width | 4ft-8ft |
| Panel Length | 4ft-10ft |
| Opening Area | 45%-85% |
| Hole Shapes | Square, Diamond,Triangle, Hexagonal, Round,Scale |
| Surface treatment | Hot dipped Glavanized, Electric galvanized, PVC coated |
| Colors | Could be made by RAL colors |
| Packing | Iron or wooden pallet, wooden case |
Expanded mesh is used for filter elements, medicine, papermaking, filtration, breeding, battery nets, packaging nets, machinery protection, handicraft manufacturing, high-end speaker grilles, decoration, child seats, baskets, baskets and road protection, oil tankers Foot nets, working platforms, escalators and walkways for heavy machinery and boilers, oil mines, locomotives, and ships of 10,000 tons. It can also be used in the construction industry, highways and bridges as steel bars.
Features and benefits of expanded metal mesh:
1. The mesh is formed from a single piece of plate
2. The process is not wasteful of material
3. Higher strength-to-weight ratio than sheet metal
4.Anti-slip surface
5. Excludes and retains simultaneously
6. Premium reinforcement properties
7. Practical and effective screening
8.High efficient conductor
9. Super corrosion resistance
