Packing 1.6mm Gabion Mesh Machine , Hexagonal Wire Mesh Machine

  • Packing 1.6mm Gabion Mesh Machine , Hexagonal Wire Mesh Machine
Place of Origin MADE IN CHINA
Brand Name TALIN
Model Number 70x90mm ,60x80mm ,80x100mm,100x120mm
Minimum Order Quantity 1 set
Price FOB USD 20000USD
Packaging Details without package
Delivery Time 30-40days
Payment Terms T/T, L/C
Supply Ability 3 Sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size 60x80mm ,80x100mm ,100x120mm Weaving Material Galvanized Wire /PVC Coated Wire /Galvanized Aluminum Wire
Weaving Width 2.3M-4.3M Weaving Length Length At Customer's Requests
Wire Diameter 1.6-4.0mm Speed 25r/min
High Light

1.6mm hexagonal wire mesh machine

,

1.6mm gabion mesh machine

,

packing hexagonal wire gabion mesh machine
Leave a Message
Product Description

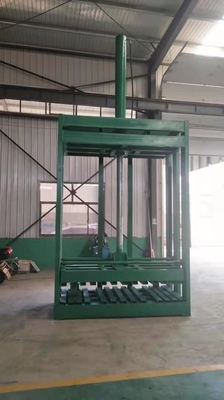

                                                                         GABION MESH PACKING MACHINE







PRODUCT INTRODUCTION

Gabion mesh Packing Machinery is dedicated for gabion mesh's packing, press the gabion to smaller CBM. The machine has an independent power sector and electrical systems, using the button to centralized control. The machine consists of rack, pressure plate, oil cylinder, oil pump unit, tank, electrical box and so on. It can produce as your requirement.

Gabion mesh Packing Machine



Operating principle

When the machine work, oil pump unit provide the pressure oil via safety valve limit the pressure and enter manual reversing valve, when manual reversing valve work on the left, pressure oil enter on the oil cylinder via piston, piston rod pull pressure plate run downwards, the down oil of the oil cylinder stream back to tank via reversing valve. When Manual reversing valve work in the middle, the up and down oil of oil cylinder will be closed by reversing valve, pressure plate can keep pressure and stay on anywhere, oil cylinder discharge loads via reversing valve, when reversing valve work on the right, pressure oil enter down part of oil cylinder pull pressure plate run upwards, the up part oil of the oil cylinder flow back to tank via reversing valve.
Above of the oil cylinder arranges the middle device, can decrease the pressure and run to the up limit.



Main Specification



Nominal pressure: 80KN
Working stroke: 700mm
Plate downlink speed: 35mm / s
Plate uplink speed: 50mm / s
Machine Package size (L X W X H): 3700x2450x1250mm
Product packaging dimensions (length X width X height): 2000x1000x1000mm
Hydraulic system working pressure: 5MPa
Hydraulic oil: 32 # hydraulic oil 120KG
Installed power: 7.5KW
