Chemical Nickel Window Screen Wire Mesh Twill Weave 40mesh

Place of Origin CHINA
Minimum Order Quantity 20T
Product Details
Material Nickel Wire Feature High Temperature Corrosion Resistance
Application Chemical Industry
High Light

Twill weave Window Screen Wire Mesh

,

40mesh Window Screen Wire Mesh

,

Chemical Nickel Wire Mesh

Leave a Message
Product Description

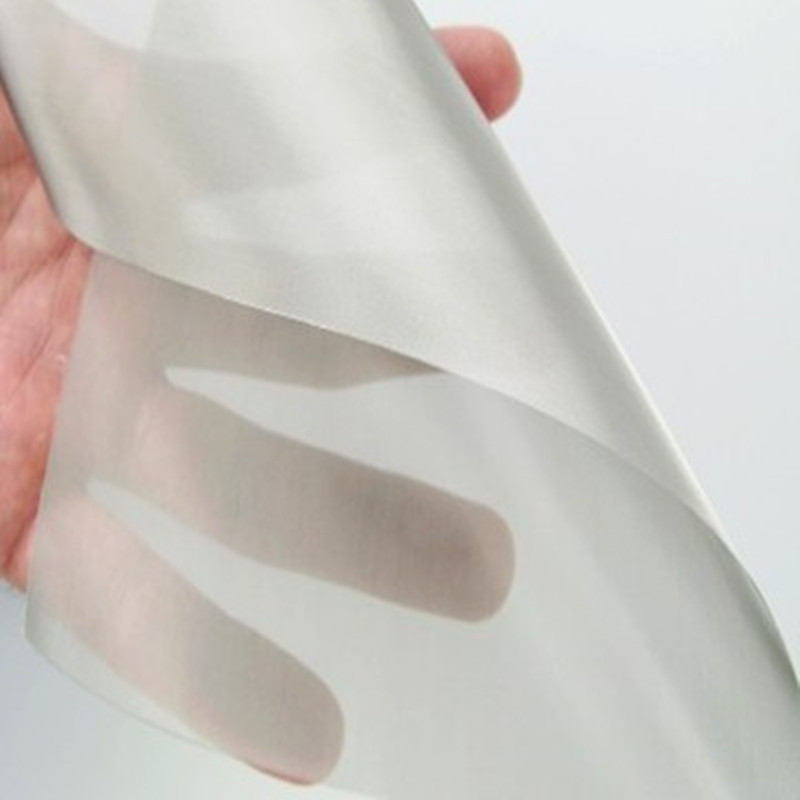

Nickel Wire Mesh

Nickel alloy wire mesh offers excellent property of heat resistance, high temperature corrosion resistance, toughness and strength for the most demanding applications.

Material: High grade of nickel wire

Weaving method:

1. Plain weave
2. Twill weave
3. Plain Dutch weave
4. Twill Dutch weave
5. Reverse Dutch weave

Common form:

1. Plain Nickel Screen: the most common
2. Pure Nickel Square Wire Mesh:Used in chemical fiber, rubber, tire manufacturing, metallurgy, medicine, food and other industries
3. Dense network of pure nickel :For the aerospace, chemical industry

Advantage: Filter performance is stable, fine

Usage: acid, alkali sieve and filter under the environmental conditions.

Mesh/Inch Wire Gauge SWG Aperture mm
3 14 6.27
4 16 4.27
5 18 3.86
6 18 3.86
8 20 2.26
10 20 1.63
20 30 0.95
30 34 0.61
40 36 0.44
