18 Gauge Crimped Wire Mesh Low Carbon Steel 20mm For Construction
Material | Low Carbon Steel Wire | Application | Mine, Coal Factory, Construction |
---|---|---|---|
Wire Gauge | 8-20 | Aperture Size | 3-30mm |
Wire Diameter | 0.91-4.06mm | Feature | Abilizing |
High Light | construction Crimped Wire Mesh,20mm Crimped Wire Mesh,Low Carbon 18 gauge wire mesh |

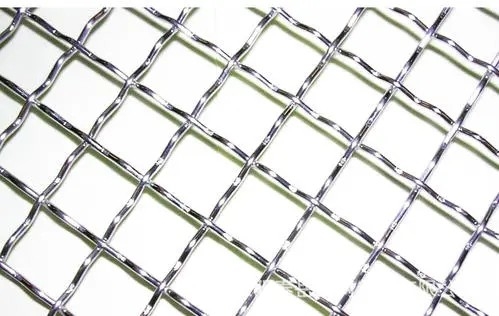

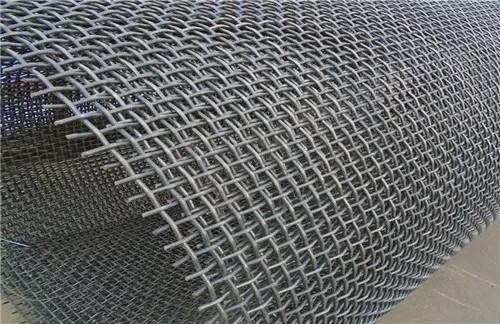

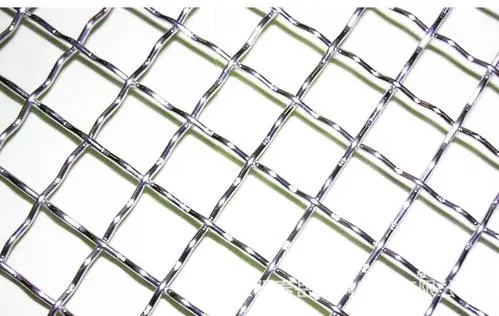

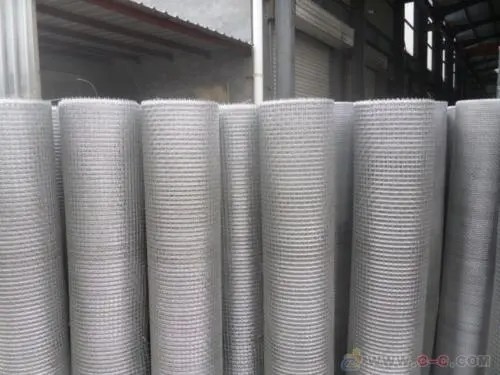

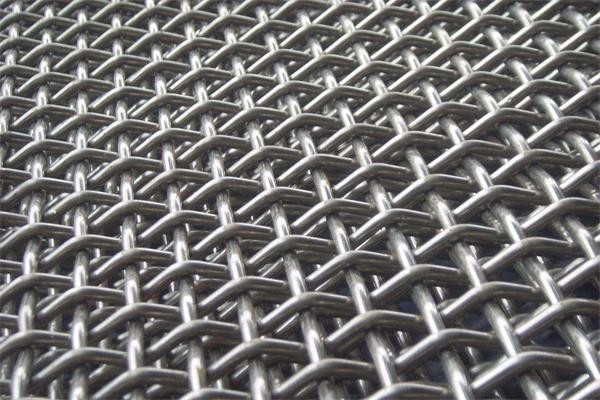

Crimped Wire Mesh
Material: low carbon steel wire, Stainless Steel wire , Galvanized wire etc.
Weaving patterns: weaving after crimping. Two-way across wave bending, locked bending, flat-topped curved, two-way bending, one-way compartment wave bending
Function: stability, consistency and smooth surface
Application: Screening in mine, coal factory, construction and other industries. Some galvanized crimped wire mesh and stainless steel crimped wire mesh are for roasting of flour food and meat.
Crimped Wire Mesh is made by carbon iron wire, galvanized steel wire or stainless steel wire.
Wire Gauge (BWG) | Aperture Size ( mm) | Wire Dia. ( mm) | Weight(Kg/ m2) |
8 | 30 | 4.06 | 6.00 |
8 | 25 | 4.06 | 7.00 |
8 | 20 | 4.06 | 8.00 |
8 | 15 | 4.06 | 1.00 |
8 | 12 | 4.06 | 13.00 0 |
8 | 10 | 4.06 | 15.00 0 |
10 | 30 | 3.25 | 4.00 |
10 | 25 | 3.25 | 4.70 |
10 | 20 | 3.25 | 5.80 |
10 | 15 | 3.25 | 7.40 |
10 | 10 | 3.25 | 10.00 0 |
12 | 30 | 2.64 | 2.70 |
12 | 12 | 2.64 | 3.20 |
12 | 20 | 2.64 | 3.90 |
12 | 15 | 2.64 | 5.00 |
12 | 10 | 2.64 | 7.00 |
14 | 20 | 2.03 | 2.38 |
14 | 15 | 2.03 | 3.10 |
14 | 12 | 2.03 | 3.70 |
14 | 10 | 2.03 | 4.35 |
14 | 8 | 2.03 | 5.22 |
14 | 6 | 2.03 | 6.52 |
14 | 4 | 2.03 | 8.68 |
14 | 3 | 2.03 | 10.40 0 |
16 | 15 | 1.63 | 2.03 |
16 | 10 | 1.63 | 2.90 |
16 | 8 | 1.63 | 3.50 |
16 | 6 | 1.63 | 4.40 |
16 | 4 | 1.63 | 5.99 |
18 | 12 | 1.22 | 1.43 |
18 | 10 | 1.22 | 1.68 |
18 | 8 | 1.22 | 2.05 |
18 | 6 | 1.22 | 2.62 |
18 | 4 | 1.22 | 3.62 |
18 | 3 | 1.22 | 4.48 |
20 | 12 | 0.91 | 0.82 |
20 | 10 | 0.91 | 0.96 |
20 | 8 | 0.91 | 1.18 |
20 | 5 | 0.91 | 1.78 |
20 | 4 | 0.91 | 2.15 |
20 | 3 | 0.91 | 2.69 |
